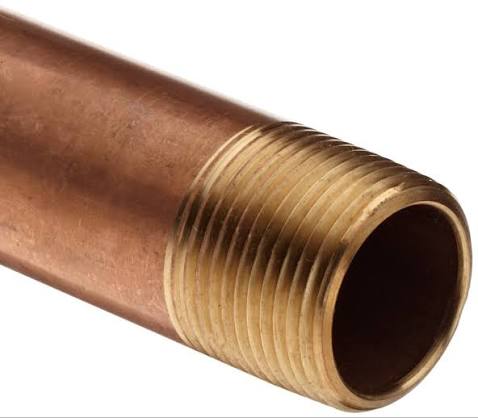

C22000 Red Brass Pipe

Red Brass Pipe / C22000 Red Brass Pipe

C22000 Red Brass Pipe is a copper-zinc alloy pipe known for its excellent corrosion resistance, strength, and attractive reddish-gold appearance. It offers good formability, durability, and thermal conductivity, making it suitable for both industrial and decorative applications. Commonly used in plumbing systems, heat exchangers, architectural projects, and fluid transportation networks, C22000 Red Brass Pipe delivers reliable long-term performance.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

CuZn10 has very good cold forming properties and is well suited for e.g. coinage, beating, embossing. This alloy has a higher strength as pure copper. It has good welding and brazing properties as well as a good corrosion resistant and is not fragile to stress corrosion and dezincification. CuZn10 is principally used in jewelry, metal goods, and watch industry and in electronic industry for installation parts. We produce qualities with grain sizes below 5 mm if needed.

Typical Applications:

Architecture: Weather Stripping, Screen Cloth, Ornamental Trim, Etching Bronze, Grill Work. Builders Hardware: Kick Plates, Hardware. Consumer: Housing for Lipstick Compacts, Costume Jewelry, Caskets, Ball Point Pens. Electrical: Wave Guides, Rotor Bar-AC Motors, Cable Warp. Fasteners: Screw Shells, Bolts, Line Clamps, Rivets. Industrial: Base for Vitreous Enamel, Escutcheons, Flexible Tube, Studs. Marine: Marine Hardware. Ordnance: Small Arms Cartridges, Artillery Projectile Rotating Bands, Press Fit, Primer Caps. Plumbing: Plumbers Brass Goods Typical Applications: Jewelry and metal good, Components for the electrical industry, Lead frames.

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
EN	CuZn10
DIN	CW501L
UNS	C22000
BS	CZ101

Chemical Composition

	Cu	Pb	Fe	Zn
Min/Max	89.0-91.0	0.05	0.05	Rem
Nominals	90.0	-	-	10.0

Physical Properties

Density	0.318 lb/in3 at 68 F
Electrical Conductivity	44 %IACS @ 68 F
Thermal Conductivity	109 BTU in/hr.ft2.°F @ 68 F

Mechanical Properties

Temper	Tensile strength Rm [ksi] [MPa]	Yield strength Rp0.2 nominal [ksi] [MPa]	Elon gation 2â€ nominal [%]	Hardness nominal R30T HV	min bend ratio 90Â°		min bend ratio 180Â°
Temper	Tensile strength Rm [ksi] [MPa]	Yield strength Rp0.2 nominal [ksi] [MPa]	Elon gation 2â€ nominal [%]	Hardness nominal R30T HV	GW	BW	GW	BW
Soft	36-42 248-290	12 83	47		0	0	0	0
H02	47-57 324-393	47 324	12	57	0	0	1.0	1.0
H04	57-66 393-455	58 400	4	66	0	1.0	1.5	3.0
H06	64-72 441-497	63 435	4	68	1.0	2.0	1.5
H06	64-72 441-497	63 435	4	68	1.0	2.0	1.5
H08	69-77 476-531	68 469	1	69	1.5		2.0
H10	72-80 497-552	70 483	1	70	1.5		3.0

Sizes Available

ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
