METALCO supplies copper, brass, and bronze semi-finished products for OEMs and
distributors worldwide — with documented quality, export packing, and technical
support you can rely on.
Get a free quote
Share your alloy grade, form, and quantity — our team will respond with lead time and documentation.

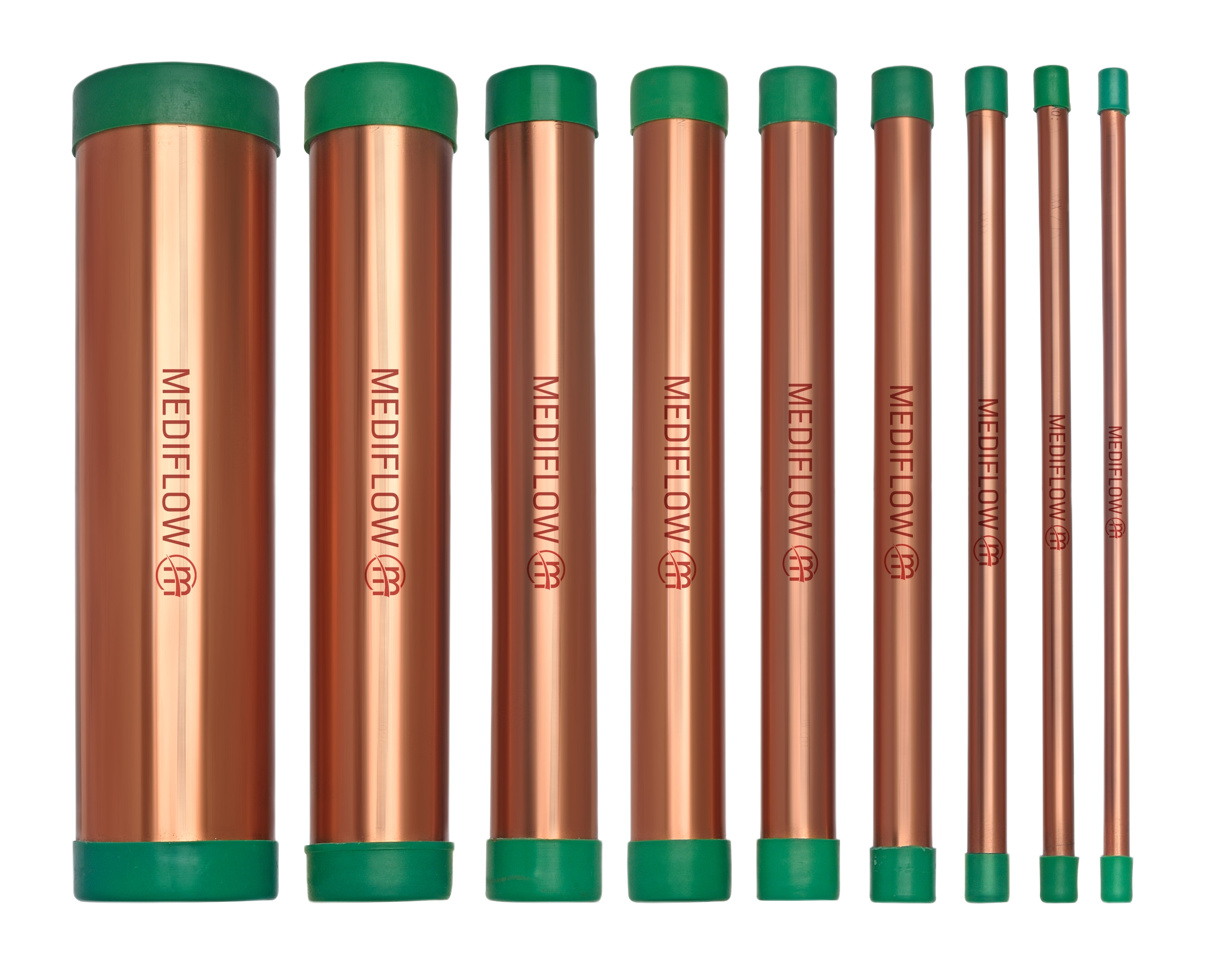

At Metal Alloys Corporation we proudly manufacture MEDIFLOW BY METALCO marked Medical Grade Copper Pipes used in Medical Gas Distribution system. Uninterrupted Medical Gas supply is a necessity in hospitals (ICCU, Operation Theater, Wards, Nursery etc). Pipes facilitate this in most effective manner.
MEDIFLOW BY METALCO marked medical grade copper tubes are manufactured as per EN13348 / BS EN 1057 specifications. The pipes are manufactured under thorough inspections and quality control measures.
MEDIFLOW BY METALCO marked medical grade copper tubes are available in size range 10mm to 108mm OD, 0.6mm to 2.0mm wall thickness in Half Hard/Hard conditions and Length 3 meter as per requirement.
MEDIFLOW BY METALCO Pipes are subjected to Third Party Inspection agencies like Lloyds, SGS, TUV as per customer demand mandatory specifications and MEDIFLOW BY METALCO.
Equivalent Specifications
Particular
Standard
METALCO
CHEMICAL COMPOSITION
Copper (Cu) + Silver (Ag)
99.90%
Spectro Analysis done per heat as per standard tolerances.
Phosphorous
0.015% to 0.04%
CARBON CONTENT TEST
Determining lubricant residue as total Carbon Content by measuring Carbon Dioxide Generated.
Tested with Combustion Method as per EN723:2009
TENSILE/ELONGATION TEST
Temper
Tensile Strength
Elongation
Hardness (Indicative)
As per EN1773
Common Term
MPa min.
A % min
HV 5
R220
annealed
220
40
(40 to 75)
Specifications maintained with help of In house testing facility.
R250
half hard
250
30
(75 to 100)
R290
hard
290
3
(min. 100)
DRIFTING TEST
Depending on Size and Temper Mandatory/Agreed Terms
Conical Mandrel @ 45º with tube end expanding 30º
FREE FROM DEFECT TEST
Eddy Current Test for detection of local defects
EDDY Current Test Conducted in accordance with EN1971
CLEANLINESS REQUIREMENT
Degreased, End Caps
Degreasing and End caps are fixed at both end of the pipe.
Request A Quote - En 13348 Medical Gas Copper Pipe
