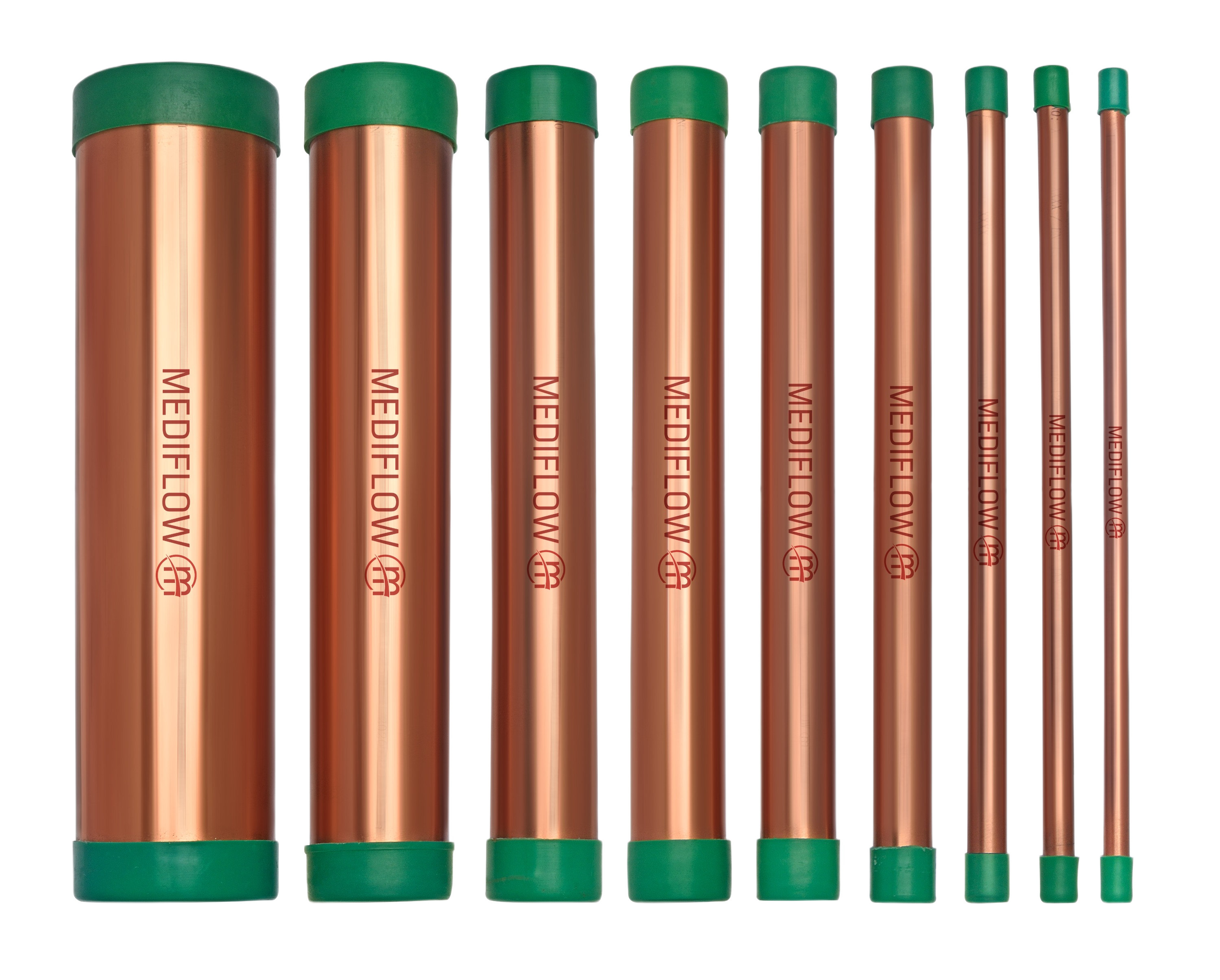

BS EN 1057 Medical Gas Copper Pipe

Medical Gas Copper Pipe / BS EN 1057 Medical Gas Copper Pipe

At Metal Alloys Corporation we proudly manufacture MEDIFLOW BY METALCO marked Medical Grade Copper Pipes used in Medical Gas Distribution system. Uninterrupted Medical Gas supply is a necessity in hospitals (ICCU, Operation Theater, Wards, Nursery etc). Pipes facilitate this in most effective manner.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description

Particular		Standard			METALCO
CHEMICAL COMPOSITION		Copper (Cu) + Silver (Ag)		99.90%	Spectro Analysis done per heat as per standard tolerances.
CHEMICAL COMPOSITION		Phosphorous		0.015% to 0.04%	Spectro Analysis done per heat as per standard tolerances.
CARBON CONTENT TEST		Determining lubricant residue as total Carbon Content by measuring Carbon Dioxide Generated.			Tested with Combustion Method as per EN723:2009
CARBON CONTENT TEST					Tested with Combustion Method as per EN723:2009
TENSILE/ELONGATION TEST
Temper		Tensile Strength	Elongation	Hardness (Indicative)
As per EN1773	Common Term	MPa min.	A % min	HV 5
R220	annealed	220	40	(40 to 75)	Specifications maintained with help of In house testing facility.
R250	half hard	250	30	(75 to 100)
R290	hard	290	3	(min. 100)
DRIFTING TEST		Depending on Size and Temper Mandatory/Agreed Terms			Conical Mandrel @ 45º with tube end expanding 30º
FREE FROM DEFECT TEST		Eddy Current Test for detection of local defects			EDDY Current Test Conducted in accordance with EN1971
CLEANLINESS REQUIREMENT		Degreased, End Caps			Degreasing and End caps are fixed at both end of the pipe.
