C33000 Low Lead Brass Tubes

Low Lead Brass Tubes / C33000 Low Lead Brass Tubes

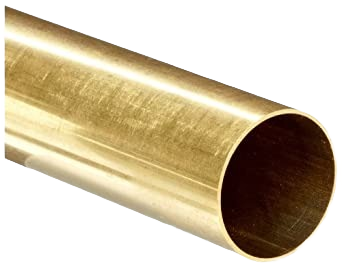

C33000 Low Lead Brass Tubes are durable copper-zinc alloy tubes with reduced lead content, offering good corrosion resistance, strength, and reliable machinability. Designed for plumbing, potable water systems, valves, fittings, and industrial applications, they ensure safe performance and compliance with modern environmental standards. These tubes provide consistent quality, easy fabrication, and long service life in demanding conditions.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

C33000 brass tubing, a yellow brass that is both formable and machinable. C330 is only produced in tube form and is generally suitable for minimal corrosive conditions. The lead content prevents from successful welding, but common machine processes include: machining, forming, piercing, and punching.

Typical Applications:

Pump Cylinder Liners
Pump Lines
Plumbing Accessories
Power Cylinders Primers
J Bends

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	C330
Europen	CW705R
BS	-
JIS	C33000
Russian	-

Chemical Composition

	Cu	Pb	Fe	Sn	Zn
Min/Max	58-61	0.25-0.70	0.15 (max)	0.25 (max)	Rem
Nominals	60.00	-	-	0.7000	40.00

Mechanical Properties

	Cu	Pb	Fe	Zn
Min/Max	65.0-68.0	0.25-0.7	0.07	Rem
Nominals	66.00	0.50	-	33.5

Fabrication Properties:

Joining Technique Suitability	Suitability
Soldering	Excellent
Brazing	Good
Oxyacethlene Welding	Fair
Gas Shielded Arc Welding	Fair
Coated Metal Arc Welding	Not Recommended
Spot Weld	Fair
Seam Weld	Not Recommended
Butt Weld	Fair
Capacity for Being Cold Worked	Excellent
Capacity for Being Hot Formed	Poor
Machinability Rating	60

Sizes Available

WIRE	1mm To 8mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
