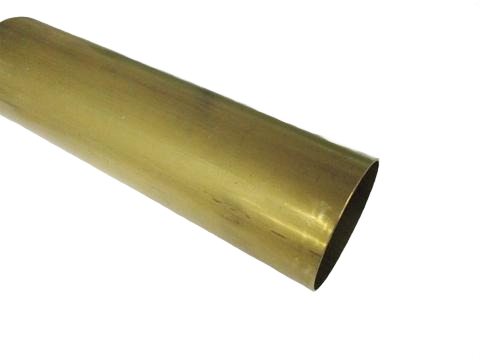

C27450 Low Lead Brass Tubes

C27450 Low Lead Brass Tubes

Low Lead Brass Tubes / C27450 Low Lead Brass Tubes

C27450 Low Lead Brass Tubes are high-quality copper-zinc alloy tubes designed with reduced lead content for improved environmental compliance. They offer excellent corrosion resistance, good machinability, and reliable strength. Widely used in plumbing, potable water systems, valves, fittings, and precision engineering applications, these tubes ensure consistent performance, durability, and long service life in demanding industrial environments.

  • Description
  • Chemical Composition
  • Physical Properties
  • Sizes Available
CATEGORY
ASTMBSENJISDINISOIS
Yellow BrassC27450CZ109CW509L 2.036Cuzn37


C27450 Lead Free Brass to not only aid in lead free compliance, but to optimize manufacturing efficiencies through productivity & complete recyclability.

Typical Applications:

  • Potable water components, fixtures & applications
  • PEX plumbing applications & systems
  • Forged products requiring lead free &/or dezincification compliance



Advantages:

  • Good machineability
  • Excellent ability to Thread Roll
  • Dezincification Resistant
  • Excellent forgeability
  • Excellent Brazing & Plating

    Equivalent Specifications
  • SPECIFICATIONSDESIGNATION
    ISOCuZn37
    EuropenCW508L
    BS-
    JISC27450
    Russian-

Chemical Composition

 CuPbFeZnOthers
Min/Max60-65<0.25 (max)0.35Rem<0.5
Nominals63.00--37.00-

Fabrication Properties

SolderingExcellent
BrazingExcellent
Cold workingExcellent
PlatingExcellent
Forgability95
Machinability70

Sizes Available

WIRE1mm To 8mm
HOLLOW RODSMin Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS6mm To 130 mm
HEX5mm To 60mm
SQUARE4mm To 60mm
FLAT5mm Min Thickness and max Width 120mm
PROFILES / SECTIONSAS per Customer Drawing
BILLETSUp to 200 mm
INGOTSAS per Specification
