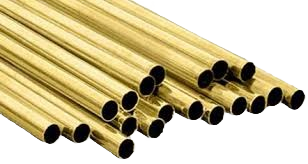

Cuzn30 Brass Tubes

Lead Free Brass Pipe / Cuzn30 Brass Tubes

CuZn30 Brass Tubes are copper-zinc alloy tubes with high copper content, offering excellent ductility, good corrosion resistance, and superior cold workability. They are widely used in heat exchangers, plumbing, decorative applications, and general engineering components. These tubes provide reliable performance, smooth forming characteristics, and long service life in both industrial and commercial applications.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

C26000 has the highest ductility in the yellow brass series. Easily machined but is more often cold formed.

Typical Applications:

Architecture, Automotive, Builders Hardware, Consumer, Electrical, Fasteners, Industrial, Ordinance, Plumbing, Other

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuZn30
Europen	CuZn30
BS	CZ 106
JIS	C 2600
Russian	L70

Chemical Composition

	Cu	Fe	Pb	Zn
Min/Max	68.5 - 71.5	0.05	0.07	Rem
Nominals	70.0000	-	-	30.0000

Physical Properties

Coefficient of Thermal Expansion	11.1 10−6Per °F (68-572 F)
Density	0.308 lb/in3 @ 68 F
Electrical Conductivity	28 %IACS @ 68 F
Electrical Resistivity	37.0 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1750 F
Melting Point Solid US	1680 F
Modulas of Elasticity in Tension	16000 ksi
Modulas of Rigidity	6000 ksi
Specific Gravity	8.53
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F
Thermal Conductivity	70 BTU in/hr.ft2.°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
