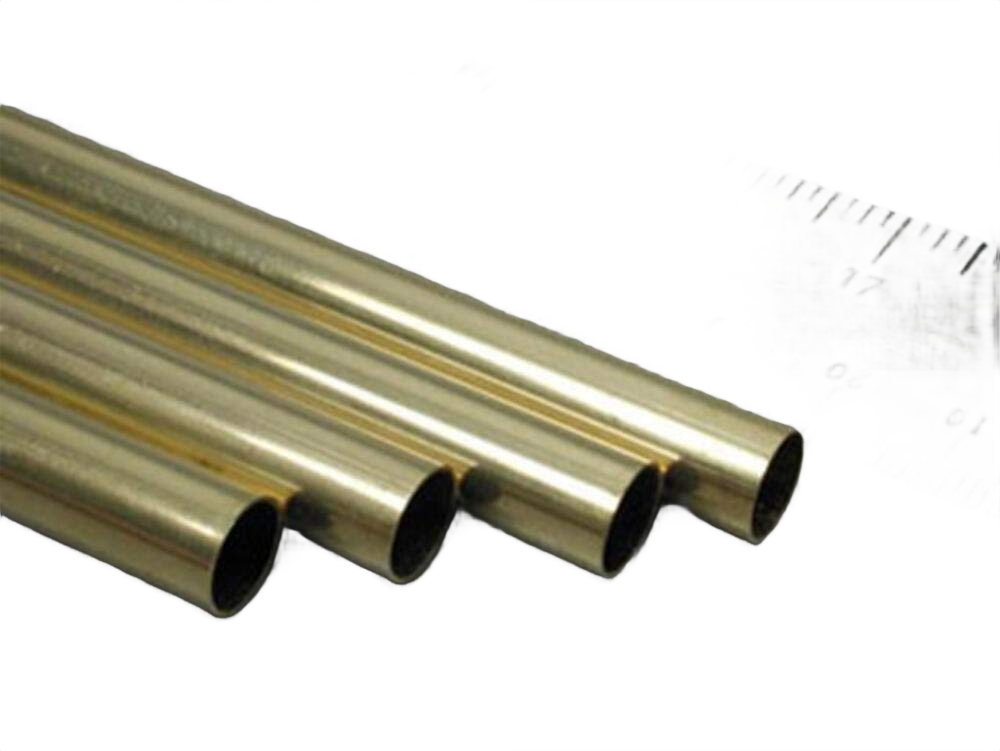

C27400 63/37 Lead Free Brass Tubes

C27400 63/37 Lead Free Brass Tubes

Lead Free Brass Pipe / C27400 63/37 Lead Free Brass Tubes

C27400 (63/37) Lead-Free Brass Tubes are high-quality copper-zinc alloy tubes offering excellent ductility, corrosion resistance, and good mechanical strength. Designed for precision engineering, they are widely used in plumbing, HVAC systems, heat exchangers, and industrial applications. These lead-free tubes ensure reliable performance, easy fabrication, and long service life in both potable water and general engineering systems.

  • Description
  • Chemical Composition
  • Physical Properties
  • Sizes Available
CATEGORY
ASTMBSENJISDINISOIS
Yellow BrassC27400CZ108CW508LH3100(92)C27202.0321,CuZn37,CuZn36CuZn371634 -CuZn37



Hot-forms more readily and is stronger than C26000.

C27400 (63/37) Lead-Free Brass Tubes are high-quality copper-zinc alloy tubes offering excellent ductility, corrosion resistance, and good mechanical strength. Designed for precision engineering, they are widely used in plumbing, HVAC systems, heat exchangers, and industrial applications. These lead-free tubes ensure reliable performance, easy fabrication, and long service life in both potable water and general engineering systems.

Typical Applications:

  • INDUSTRIAL: Cold Headed Parts
  • PLUMBING: Plumbing Accessories, Traps, Plumbing Trap Tube


Equivalent Specifications

SPECIFICATIONSDESIGNATION
ISOCuZn37
EuropenCuZn37
BSCZ 108
JISC 2720
RussianL-63

Chemical Composition

 CuFePbZn
Min/Max61.0-64.0.05.09Rem
Nominals62.5--37.5

Physical Properties

Melting Point - Liquidus1680 F
Density 0.305 lb/in3 at68 F
Specific Gravity8.44
Electrical Conductivity27.60 %IACS @ 68 F
Thermal Conductivity67 BTU in/hr.ft2.°F @ 68 F
Coefficient of Thermal Expansion11.40 10−6Per °F (68-572 F)
Specific Heat Capacity0.090 Btu/lb/°F at 68 F
Modulas of Elasticity in Tension15000 ksi
Modulus of Rigidity5600 ksi

Sizes Available

WIRE1mm To 8 mm
HOLLOW RODSMin Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS6mm To 130 mm
HEX5mm To 60mm
SQUARE4mm To 60mm
FLAT5mm Min Thickness and max Width 120mm
PROFILES / SECTIONSAS per Customer Drawing
BILLETSUp to 200 mm
INGOTSAS per Specification
