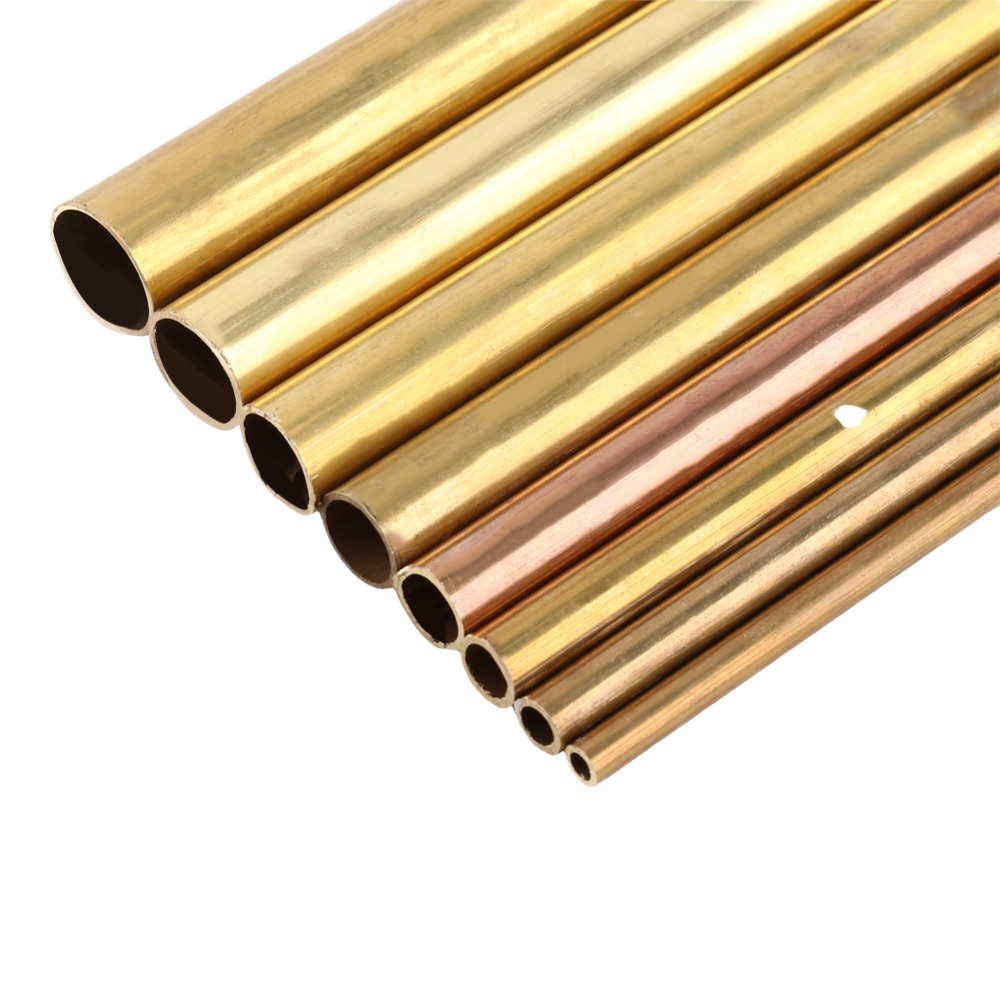

C27200 63/37 Lead Free Brass Pipe

Lead Free Brass Pipe / C27200 63/37 Lead Free Brass Pipe

C27200 (63/37) Lead-Free Brass Pipes are high-quality copper-zinc alloy tubes known for excellent ductility, corrosion resistance, and good strength. With a 63% copper and 37% zinc composition, they are widely used in plumbing, HVAC systems, heat exchangers, and general engineering applications. These lead-free pipes ensure reliable performance, easy formability, and long-lasting durability in industrial and potable water systems.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

CuZn37 is the major brass alloy for the cold forming process. Even though brasses with lower Zinc content have better cold forming properties, CuZn37 is the most used alloy. Reasons for this are on the one hand economical due to lower price of Zinc compared to Copper, on the other hand the forming properties of this alloy meet the demand of many applications.Typical Applications:

Fasteners: Fasteners, Fasteners
Industrial: Cold Headed Parts, Heat Exchanger Shells, Pump Cylinder Liners

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
Europen	CuZn36

Chemical Composition

	Cu	Fe	Pb	Zn
Min/Max	62.0 - 65.0	.07	.07	Rem
Nominals	63.5	-	-	36.5

Physical Properties

Melting Point - Liquidus	1680 F
Density	0.305 lb/in3 at 68 F
Specific Gravity	8.44
Electrical Conductivity	27.60 %IACS @ 68 F
Thermal Conductivity	67 BTU in/hr.ft2.°F @ 68 F
Coefficient of Thermal Expansion	11.40 10−6Per °F (68-572 F)
Specific Heat Capacity	0.090 Btu/lb/°F at 68 F
Modulas of Elasticity in Tension	15000 ksi
Modulus of Rigidity	5600 ksi
Modulus of Rigidityksi	5600

Sizes Available

WIRE	1mm To 8 mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
