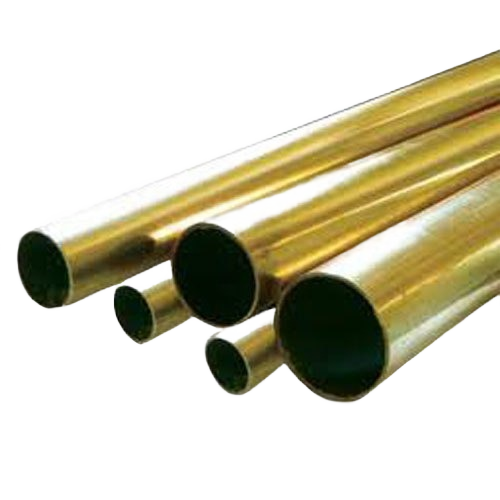

C67400 High Tensile Brass Hollow Bar

High Tensile Brass Hollow Rods / C67400 High Tensile Brass Hollow Bar

C67400 High Tensile Brass Hollow Bars are high-strength copper-zinc-aluminum alloy bars engineered for superior durability, corrosion resistance, and wear performance. Ideal for marine, heavy engineering, and industrial applications, they offer excellent machinability, high load-bearing capacity, and dependable long-term performance in demanding environments.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

Excellent hot and cold workability; good forge ability. Fabricated by bending, coining, coppersmith, drawing and upsetting, hot forging and pressing, knurling, roll threading, shearing, spinning, swaging, and stamping.

Typical Applications:

Industrial: Gears, Sealing Rings, Thrust Bearings, Bushings, Cams, Spindles, Bearings, Idler Pins, Connecting Rods, Drive Shafts, Valve Seats, Sleeve Bearings, Piston Heads
Marine: Pump Parts, Hardware, High Strength

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	C67300
Europen	C67400

Chemical Composition

	Cu	Al	Fe	Pb	Mn	Ni	Si	Sn	Zn
Min/Max	60.0-63.0	.25	.35	.50	2.0-3.5	.25	.50-1.5	.30	Rem.
Nominals	61.5	-	-	-	2.7	-	1.0	-	-

Physical Properties

Modulas of Elasticity in Tension	16700 ksi
Density	0.300 lb/in3
Melting Range	1690 â€“ 1730
Coefficient of Expansion	(68 to 572oF) 11 +in/in oF
Thermal Conductivity	55 Btu/ft h oF
Electrical Conductivity	21 % IACS
Electrical Resistivity	54 Î© (circ mil/ft)
Relative Magnetic Permeability	<1.02

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
