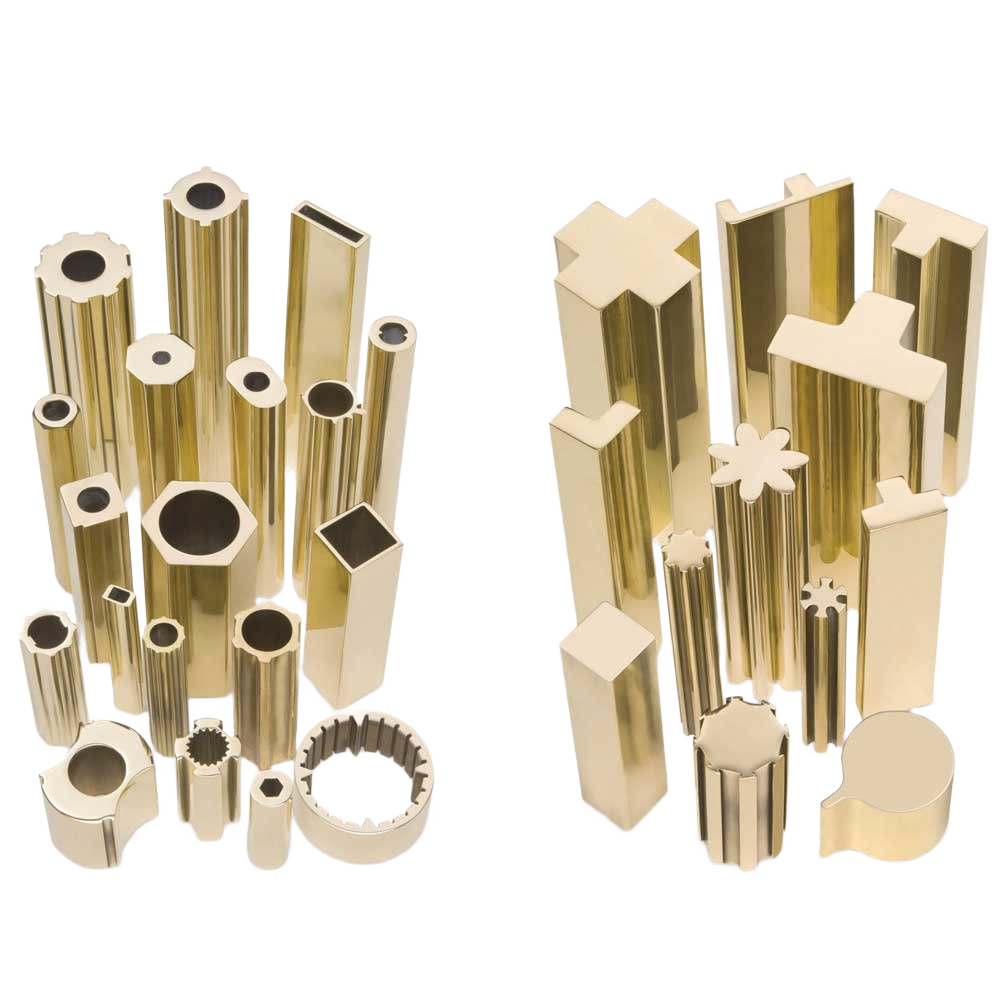

C48600 Brass Hollow Bars

C48600 Brass Hollow Bars are high-strength brass tubes engineered for excellent corrosion resistance, durability, and dependable machinability. Suitable for marine, industrial, plumbing, and precision engineering applications, they provide reliable performance under demanding conditions and are ideal for manufacturing valves, fittings, bushings, and other critical components.

  • Description
  • Chemical Composition
  • Physical Properties
  • Sizes Available
CATEGORY
ASTMBSENJISDINISOIS
C48600CZ111 C44302.0371CuZn28Sn1

Naval Brasses are nominally composed of 60% copper, 39.2% zinc and 0.8% tin. As are typical of brass alloys . Naval brasses have good strength and rigidity. By substituting tin for an equal quantity of zinc, a high corrosion resistance to seawater is achieved. The addition of tin also gives the C486 alloys an inherent resistance to dezincification, thereby further inhibiting the impingement by seawater at higher than normal temperatures. The alloys are also noted for its resistance to wear, fatigue, galling, and stress corrosion cracking.


Equivalent Specifications

SPECIFICATIONSDESIGNATION
ISOCuZn28Sn1
EuropenCuZn28Sn1As
BSCZ 111
JISC 4430
RussianL62-1

Chemical Composition

 CuAsPbSnZn
Min/Max59.0 - 62.00.02-0.251.0-2.50.30 - 1.5Rem
Nominals60.50.131.70.9-

Physical Properties

Melting Point - Liquidus°F1645
Melting Point - Solidus°F1635
Densitylb/cu in. at 68°F0.304
Specific Gravity8.42
Electrical Conductivity% IACS at 68°F25
Coefficient of Thermal Expansion 68-572 10−6Per °F (68-572 F)13
Modulus of Elasticity in Tensionksi14600

Sizes Available

HOLLOW RODSMin Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS6mm To 130 mm
HEX5mm To 60mm
SQUARE4mm To 60mm
FLAT5mm Min Thickness and max Width 120mm
PROFILES / SECTIONSAS per Customer Drawing
BILLETSUp to 200 mm
INGOTSAS per Specification
