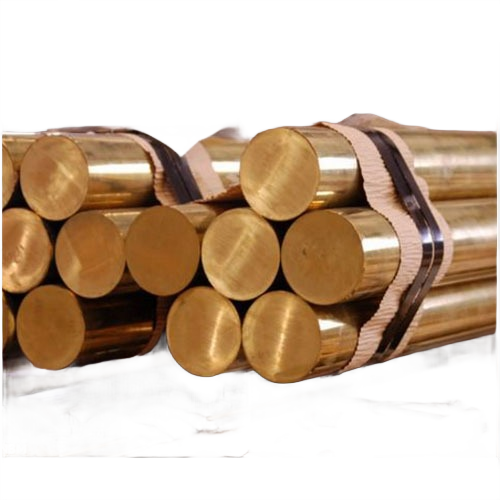

C27450 DZR Lead Free Brass

C27450 DZR Lead-Free Brass is a dezincification-resistant copper-zinc alloy designed for superior corrosion resistance, strength, and long-term reliability. As a lead-free material, it is ideal for potable water systems, plumbing, valves, fittings, and precision-engineered components. It ensures safe performance, excellent machinability, and compliance with modern environmental and drinking water standards.

  • Description
  • Chemical Composition
  • Physical Properties
  • Sizes Available

C27450 Lead Free Brass to not only aid in lead free compliance, but to optimize manufacturing efficiencies through productivity & complete recyclability.

Technical Specifications :


Equivalent Specifications :
SpecificationsDesignation
ISOCuZn37
EuropenCW508L
BS
JISC27450
Russian



Typical Applications :
C27450 DZR Lead Free Brass
  • Potable water components, fixtures & applications
  • PEX plumbing applications & systems
  • Forged products requiring lead free &/or dezincification compliance



Advantages :
C27450 DZR Lead Free Brass
  • Good machineability
  • Excellent forgeability
  • Excellent ability to Thread Roll
  • Excellent Brazing & Plating
  • Dezincification Resistant
Chemical Composition:
 CuPbFeZnOthers
Min/Max60-65<0.25 (max)0.35Rem<0.5
Nominals63.00  37.00



Mechanical Properties:
Rod H02Tensile Strength (ksi)Yield Strength (ksi)Elongation (%)Hardness (Rb)
 584030%55-75
Fabrication Properties :
SolderingExcellent
BrazingExcellent
Cold workingExcellent
PlatingExcellent
Forgability95
Machinability70
Sizes Available :
SolderingExcellent
WIRE1mm TO 8 mm
HOLLOW RODSMin Bore Size 20 mm and Max OD 100 mm
ROUND RODS6mm To 130 mm
HEX5mm To 60mm
SQUARE4mm To 60mm
FLAT5mm Min Thickness and max Width 120mm
PROFILES / SECTIONSAS per Customer Drawing
BILLETSUp to 200mm
INGOTSAS per Specification
