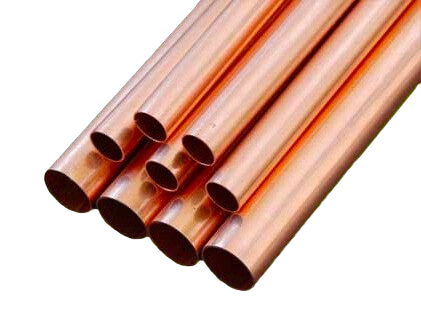

C101 Etp Copper Pipe

Copper Pipe / C101 Etp Copper Pipe

C101 ETP Copper Pipe is an electrolytic tough pitch copper pipe offering excellent electrical and thermal conductivity, high corrosion resistance, and good mechanical strength. It provides reliable performance in both industrial and domestic applications due to its durability and ease of fabrication. Common uses include plumbing systems, HVAC, refrigeration, heat exchangers, electrical applications, and fluid transport systems requiring efficient and long-lasting performance.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

High electrical and thermal conductivity, good corrosion resistance and solderability. C11000 is used for welding fixtures, anodes, bus bar in electrical power installations, ground straps, commutators and current carrying hardware. Its inherent fabrication qualities readily permit it to be bent, soldered, drilled, peened, riveted and formed to fit almost any design specification.

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	Cu-ETP
Europen	Cu-ETP
BS	Cu-ETP-2
JIS	C-1100
Russian	MO

Chemical Composition

	Cu	0
Min/Max	99.90 min	-
Nominals	-	0.0400

Physical Properties

Coefficient of Thermal Expansion	9.4 10−6Per °F (68-212 F) 9.6 10−6Per °F (68-392 F) 9.8 10−6Per °F (68-572 F)
Density	0.322 lb/in3 @ 68 F
Electrical Conductivity	101%IACS @ 68 F
Electrical Resistivity	10.3 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1981 F
Melting Point Solid US	1949 F
Modulas of Elasticity in Tension	17000 ksi
Modulas of Rigidity	6400 ksi
Specific Gravity	8.91
Specific Heat Capacity	0.092 Btu/lb/°F @ 68 F
Thermal Conductivity	226.0 BTU in/hr.ft2.°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	8mm To 100 mm
HEX	10mm To 60mm
SQUARE	10mm To 60mm
FLAT	10mm Min Thickness and max Width 120mm
BILLETS	Up to 200 mm
INGOTS	AS per Specification
