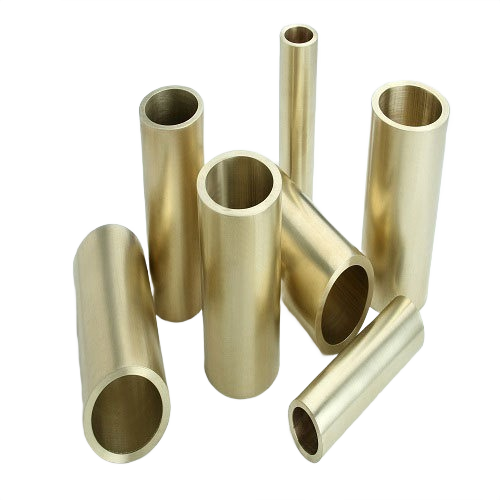

C95400 Aluminium Bronze Hollow Bar

Bronze Hollow Rods / C95400 Aluminium Bronze Hollow Bar

C95400 Aluminium Bronze Hollow Bars are high-strength alloy tubes known for exceptional wear resistance, corrosion protection, and excellent load-bearing capacity. They are ideal for bushings, bearings, gears, valve components, marine hardware, and heavy-duty industrial applications where durability and reliable performance are essential.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

C95400 Aluminum Bronze, also known by C954, is the most popular, all purpose aluminum bronze alloy. It provides high yield and tensile strength, good ductility, weldability and exceptional resistance to wear, fatigue and deformation under shock or overload. Typical applications include bearings, gears, valve components, wearplate and wearstrip. Conforms to continuous cast specification ASTM B505 and centrifugal cast specification ASTM B271.

Typical Applications:

AUTOMOTIVE: Weld Guns
FASTENERS: Nuts, Large Hold Down Screws
INDUSTRIAL: Pickling Hooks, Bearings, Pawl, Worm Gears, Machine Parts, Spur Gears, Heavily Loaded Worm Gears, Pump Parts, Landing Gear Parts, Valve Bodies, Valve Guides, Valve Seats, Bearing Segments for the Steel Industry, Pressure Blocks for the Steel Industry, High Strength Clamps, Bushings, Valves, Gears
MARINE: Ship Building, Covers for Marine Hardware
ORDINANCE: Government Fittings

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
Italy	CuAl11Fe4

Chemical Composition

	Al	Cu	Fe	Mn	Ni
Min/Max	10.0-11.5	83.0 min	3.0-5.0	0.5	1.5
Nominals	10.8000	83.2000	4.0000	-	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.0 10−6Per °F (68-572 F)
Density	0.269 lb/in3 at 68 F
Electrical Conductivity	13 %IACS @ 68 F
Electrical Resistivity	80.2 ohms-cmil/ft @ 68 F
Magnetic Permeability (As Cast)	1.27
Magnetic Permeability (TQ50 temper)	1.2
Melting Point â€“ Liquidus	1900 F
Melting Point â€“ Solidus	1880 F
Modulas of Elasticity in Tension	15500 ksi
Specific Gravity	7.45
Specific Heat Capacity	0.1 Btu/lb/°F at 68 F
Thermal Conductivity	33.9 BTU in/hr.ft2.°F @ 68°F
