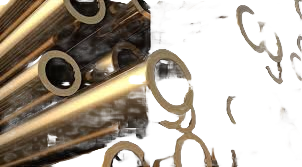

Aluminum Bronze Rods Hollow Bars

Bronze Hollow Rods / Aluminum Bronze Rods Hollow Bars

Aluminum Bronze Hollow Bars are high-strength alloy tubes engineered for demanding industrial applications. They offer exceptional wear resistance, corrosion protection, high load-bearing capacity, and excellent durability, making them ideal for bushings, bearings, marine hardware, hydraulic equipment, valve components, and heavy engineering applications.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

C61400 Copper Aluminum Bronze Alloy has excellent mechanical properties and ductility. With excellent corrosion resistance, this alloy is suitable for high load applications and applications with high-pressure requirements.

Typical Applications:

FASTENERS: Threaded Members, Stringers, Bolts, Nuts
INDUSTRIAL: Piping Systems, Structural Components, Machine Parts, Corrosion Resistant Vessels, Sea Water Piping, Condenser Tube and Piping Systems, Tube Sheets, Welded Pipe, Seamless Tubing and Pipe, Chutes for Abrasive Grains, Heat Exchanger Tubes, Mining Shovels, Tanks, Condenser Head Plates
MARINE: Fasteners, Protective Sheathing, Pressure Vessels, Marine Hardware, Welded Tanks
ORDINANCE: Blending Chambers

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuAl8Fe3
Europen	CuAl8Fe3
BS	AS 106
JIS	C 6140

Chemical Composition

	Al	Cu	Fe	Pb	Mn	P	Zn
Min/Max	6.0 - 8.0	Rem	1.5 - 3.5	0.01	1	0.015	0.2
Nominals	7.0000	91.0000	2.0000	-	-	-	-

Physical Properties

Product Property	US Customary
Coefficient of Thermal Expansion	9.0 10−6Per °F (68-572 F)
Density	0.285 lb/in3 @ 68 F
Electrical Conductivity	14 %IACS @ 68 F
Electrical Resistivity	74.1 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1915 F
Melting Point Solid US	1905 F
Modulas of Elasticity in Tension	17000 ksi
Modulas of Rigidity	6400 ksi
Specific Gravity	7.89
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F
Thermal Conductivity	39.0 BTU in/hr.ft2.°F @ 68 F
