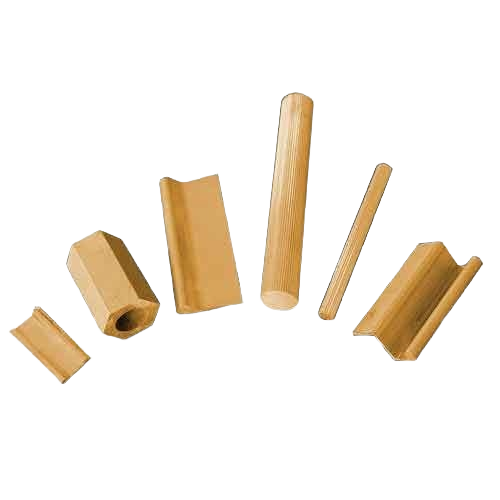

Brass Profile Rods

Brass Rods and Profiles / Brass Profile Rods

C36000 Free Machining Brass / Free Cutting Brass is ideally suited for high speed machining operations with its superior machinability, thread rolling and knurling characteristics. Its machinability rating of 100 is standard against which all other copper alloys are rated. It is easily soldered or brazed and has good resistance to corrosion.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

BUILDERS HARDWARE: Lock Bodies, Hardware, Fittings CONSUMER: Hot Combs (to Straighten Hair)
FASTENERS: Bolts, Nuts, Screws
INDUSTRIAL: Faucet Components, Pneumatic Fittings, Fluid Connectors, Automatic Screw Machine Parts, Unions, Adapters, Screw Machine Products, Gauges, Valve Seats, Valve Trim, Valve Stems, Nozzles, Pinions, Gears
PLUMBING: Plumbers' Brass Goods, Faucet Stems, Faucet Seats, Plumbing Fittings

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuZn36Pb3
Europen	CuZn36Pb3
BS	CZ-124
JIS	C 4640
Russian	L060-1

Chemical Composition

	Cu	Fe	Pb	Sn	Zn
Min/Max	59.0 - 62.0	0.1	0.2	0.5 - 1.0	Rem
Nominals	60.0000	-	-	0.7000	39.2000

Physical Properties

Coefficient of Thermal Expansion	11.8 10−6Per °F (68-572 F)
Density	0.304 lb/in3 @ 68 F
Electrical Conductivity	26 %IACS @ 68 F
Electrical Resistivity	39.9 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1650 F
Melting Point Solid US	1630 F
Modulas of Elasticity in Tension	15000 ksi
Modulas of Rigidity	5600 ksi
Specific Gravity	8.41
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F
Thermal Conductivity	67.0 BTU in/hr.ft2.°F @ 68 F

Sizes Available

WIRE	1mm To 8mm
HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
