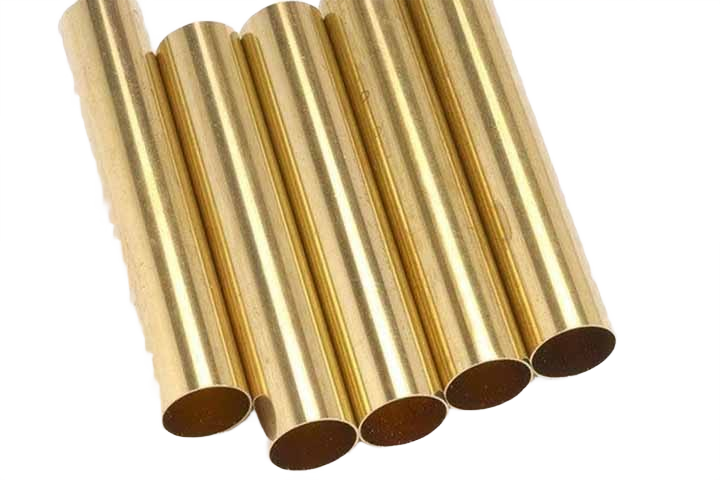

Nfa 51 102 Aluminium Brass Pipe

Aluminium Brass Tubes / Nfa 51 102 Aluminium Brass Pipe

NFA 51 102 aluminium brass pipes offer French-standardized protection against high-velocity seawater erosion in marine applications.

Download PDF Request a Quote (RFQ)

Urgent Quote? WhatsApp Now

Description
Chemical Composition
Physical Properties
Sizes Available

A Copper Zinc Alloy containing Aluminum and small amount of Arsenic which is added as an inhibitor against dezincification. Inhibited Aluminum brass resists the action of high velocity salt and brackish water and is commonly used for condensor tubes. The outstanding characteristics of aluminum brass is the high resistance to impingement attack. Tubes of this alloy are recommended for use in marine and land power stations where cooling water velocities are high and where inhibited admiralty brass has failed from impingement.

Typical Applications:

Condenser Tube, Evaporator Tubes, Ferrules, Distiller Tubes, Heat Exchanger Tubes

Equivalent Specifications

SPECIFICATIONS	DESIGNATION
ISO	CuZn20Al2
Europen	CuZn20Al2
BS	CZ 110
JIS	C6870
Russian	LAMs77-2-0.05

Chemical Composition

	Al	As	Cu	Fe	Pb	Zn
Min/Max	1.8 - 2.5	0.02 - 0.06	76.0 - 79.0	0.06	0.07	Rem
Nominals	2.0000	0.0400	77.5000	-	-	20.5000

Physical Properties

Coefficient of Thermal Expansion	10.3 10−6Per °F (68-572 F)
Density	0.301 lb/in3 at 68 F
Electrical Conductivity	23 %IACS @ 68 F
Electrical Resistivity	45.1 ohms-cmil/ft @ 68 F
Melting Point Liquid US	1780 F
Melting Point Solid US	1710 F
Modulas of Elasticity in Tension	16000 ksi
Modulas of Rigidity	6000 ksi
Specific Gravity	8.33
Specific Heat Capacity	0.09 Btu/lb/°F @ 68 F
Thermal Conductivity	58.0 BTU in/hr.ft2.°F @ 68 F

Sizes Available

HOLLOW RODS	Min Bore Size 20 mm and Max OD 100 mm
ROUND RODS/RODS	6mm To 130 mm
HEX	5mm To 60mm
SQUARE	4mm To 60mm
FLAT	5mm Min Thickness and max Width 120mm
PROFILES / SECTIONS	AS per Customer Drawing
BILLETS	Up to 200 mm
INGOTS	AS per Specification
